Tangential Microfiltration of blackberry (Rubus adenotrichus Schltdl.) juice sweetened with stevia (Stevia rebaudiana Bertoni)
DOI:
https://doi.org/10.22267/rcia.193602.115Keywords:
conservation, drink, filtration, formulation, membrane, sweetenerAbstract

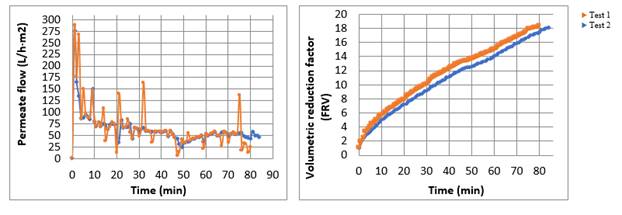

The modern consumer values those components that can promote their well-being and help them reduce the risk of diseases the use of steviolglucosides as a sweetener in the formulation of foods is promising. The study evaluated the tangential microfiltration for clarification and conservation of blackberry juice sweetened with dried leaves of stevia. Two ceramic membranes were evaluated. The tests were performed at 35°C in concentration mode at a constant transmembrane pressure and tangential velocity. The formulation of the juice was defined through sensory evaluation tests. Volume, flow permeate, temperature, and pressure input and output were registered. The results of the variables analyzed in the process, as well as the physicochemical characterization of clarified juice, helped define the operating conditions for draw two formulations of microfiltrated juice, sweetened with stevia or sucrose, and thus evaluate the effectiveness of microfiltration as a conservation treatment. Aciduric microorganisms were quantified; molds and yeasts were carried out in the generated pasteurized samples stored at five different temperatures (5, 20, 30, 37, and 45°C). The recovery permeate juice obtained was 84.62%. The permeate Flow (Jp), exhibited higher values at 40L/hm2. Also, the concentration of stevioside and rebaudioside A in the retentate increased with advancing ultrafiltration. A significant variation in color, turbidity, and soluble solids, was observed, unlike the pH. Also, its chemical and microbiological stability is confirmed that allows you to preserve quality during 27 days of storage.
Downloads
Metrics
References
Benito, J.; Conesa, A.; Rodríguez, M. (2004). Membranas cerámicas. Tipos, métodos de obtención y caracterización. Bol. Soc. Esp. Ceram. V. 43 (5):829-842.
Briano, L. (2013). Production of ellagitannins concentrate by UF-NF from tropical highland blackberries. Recovered from https://run.unl.pt/bitstream/10362/10420/1/Briano_ 2013.pdf
Cassano, A.; Jiao, B.; Drioli, E. (2004).Production of concentrated kiwifruit juice by integrated membrane process. Food res int. 37(2):139-148. doi: 10.1016/j.foodres.2003.08.009
COVENIN - Comisión Venezolana de Normas Industriales. (1978a). Método para el recuento de aerobios mesófilos, Norma Nº 902. Caracas: FONDONORMA.
COVENIN - Comisión Venezolana de Normas Industriales. (1978b). Método para el recuento de mohos y levaduras, Norma Nº 1337. Caracas: FONDONORMA.
COZZANO, S. (2007). Impacto del proceso de microfiltración tangencial sobre el valor de la mora (Rubusspp) como alimento funcional. Costa Rica: Universidad de Costa Rica.
Das, A.; Paul, D.; Golder, A.; Das, C. (2015). Separation of Rebaudioside-A from stevia extract: membrane selection, assessment of permeate quality, and fouling behavior in laminar flow regime. Separation and Purification Technology. 144: 8-15.
De Bruijn, J.; Bórquez, R. (2006). Analysis of the fouling mechanisms during cross-flow ultrafiltration of apple juice. Food sci tech. 39(8):861-871.
Laorko, A.; Tongchitpakdee, S.; Youravong, W. (2013). Storage quality of pineapple juice non-thermally pasteurized and clarified by microfiltration. J food eng. 116(2):554-561. doi: 10.1016/j.jfoodeng.2012.12.033
Matta, V. M.; Moretti, R. H.; Cabral, L. M. (2004). Microfiltration and reverse osmosis for clarification and concentration of acerola juice. J Food Eng. 61(3):477-482. doi: 10.1016/S0260-8774(03)00154-7
Monteiro, F. S.; Viotto, L. A.; Cabral, L. M. C. (2011). Evaluation of anthocyanin content on blackberry juice (Rubus spp.) processed by microfiltration. Athens, Grecia: Embrapa Agroindústria de Alimentos-Artigo em anais de congresso (ALICE).
Montero, M. (2008). Estudio del proceso para la elaboración de jugo clarificado de mora por microfiltración tangencial. Costa Rica: Universidad de Costa Rica.
Nandi, B. K.; Das, B.; Uppaluri, R.; Purkait, M. K. (2009). Microfiltration of mosambi juice using low-cost ceramic membrane. J Food Eng. 95(4):597-605.doi: 10.1016/j.jfoodeng.2009.06.024
Onsekizoglu, P.; Bahceci, K. S.; Acar, M. J. (2010). Clarification and the concentration of apple juice using membrane processes: A comparative quality assessment. J Membrane Sci. 352(1):160-165. doi:10.1016/j.memsci. 2010.02.004
Poletto, P.; Duarte, J.; Lunkes, M. S.; Dos Santos, V.; Zeni, M.; Meireles, C. S.; Bottino, A. (2012). Avaliação das características de transporte em membranas de poliamida 66 preparadas com diferentes solventes. Polimery-w. 22(3):273-277. doi: 10.1590/S0104-14282012005000041
Puri, M.; Sharma, D.; Barrow, C. J.; Tiwary, A. K. (2012). Optimisation of novel method for the extraction of steviosides from Stevia rebaudiana leaves. Food Chem. 132(3):1113-1120. doi: 10.1016/j.foodchem.2011.11.063
Rai, P.; Majumdar, G. C.; Dasgupta, S.; De, S. (2005). Understanding ultrafiltration performance with mosambi juice in an unstirred batch cell. J Food Process Eng. 28(2): 166-180. doi: 10.1111/j.1745-4530.2005.00399.x
Saha, N. K.; Balakrishnan, M.; Ulbricht, M. (2007). Sugarcane juice ultrafiltration: FTIR and SEM analysis of polysaccharide fouling. J Membrane Sci. 306(1):287-297. doi: 10.1016/j.memsci.2007.09.006
Salas, R. (2003). Estudio del proceso de clarificación de jugo de banano mediante microfiltración tangencial. Recovered fromhttp://repositorio.sibdi.ucr.ac.cr:8080/jspui/ bitstream/123456789/2516/1/28855.pdf
Solís, C.; Vélez, C.; Ramírez, J. S. (2016). Tecnología de membranas: desarrollo histórico. Entre Ciencia e Ingeniería. 19:89-98.
Tapia, M. S.; Alzamora, S. M.; Chirife, J. (2008). Effects of Water Activity (aw) on Microbial Stability: As a Hurdle in Food Preservation, pp 239. En: Barbosa-Cánovas, G. V; Fontana, A.J.; Schmidt S.J. & Labuza, T.P. Water activity in foods. Segunda edición. Iowa, USA: IFT Press and Blackwell Publishing.
Tupuna, S. D. (2012). Obtención de jugo clarificado concentrado de mortiño (vaccinium floribundum Kunth) mediante el uso de tecnología de membrana. Recovered fromhttp://bibdigital.epn.edu.ec/bitstream/15000/4947/1/CD-4485.pdf
Vaillant, F.; Millan, A.; Dornier, M.; Decloux, M.; Reynes, M. (2001). Strategy for economical optimisation of the clarification of pulpy fruit juices using crossflow microfiltration. J Food Eng. 48(1):83-90. doi: 10.1016/S0260-8774(00)00152-7
Vaillant, F., Perez, A. M.; Viquez, F. (2004). Microfiltración tangencial: Una alternativa innovadora para la transformación de frutas tropicales. La Alimentación Latinoamericana. 252:38-46. doi: 10.1016/j.ifset.2004.11.004
Vaillant, F.; Cisse, M.; Chaverri, M.; Perez, A.; Dornier, M.; Viquez, F.; Dhuique-Mayer, C. (2005). Clarification and concentration of melon juice using membrane processes. Innov Food Sci Emerg. 6(2):213-220. doi: 10.1016/j.ifset.2004.11.004
Villareal, Y.; Mejía, F.; Osorio, O.; Cerón, F. A. (2013). Efecto de pasteurización sobre características sensoriales y contenido de vitamina C en jugos de frutas. Biotecnologia en el Sector Agropecuario y Agroindustrial. 11(2): 66-75.
Vladisavljević, G. T.; Vukosavljević, P.; Veljović, M. S. (2013). Clarification of red raspberry juice using microfiltration with gas backwashing: A viable strategy to maximize permeate flux and minimize a loss of anthocyanins. Food Bioproducts Process. 91(4):473-480. doi: 10.1016/j.fbp.2013.05.004
